2N5485 MOSFET. Datasheet pdf. Equivalent

Type Designator: 2N5485

Type of Transistor: JFET

Type of Control Channel: N -Channel

Maximum Power Dissipation (Pd): 0.35 W

Maximum Drain-Source Voltage |Vds|: 25 V

Maximum Gate-Source Voltage |Vgs|: 25 V

Maximum Drain Current |Id|: 0.01 A

Maximum Junction Temperature (Tj): 150 °C

Drain-Source Capacitance (Cd): 1 pF

Maximum Drain-Source On-State Resistance (Rds): 100 Ohm

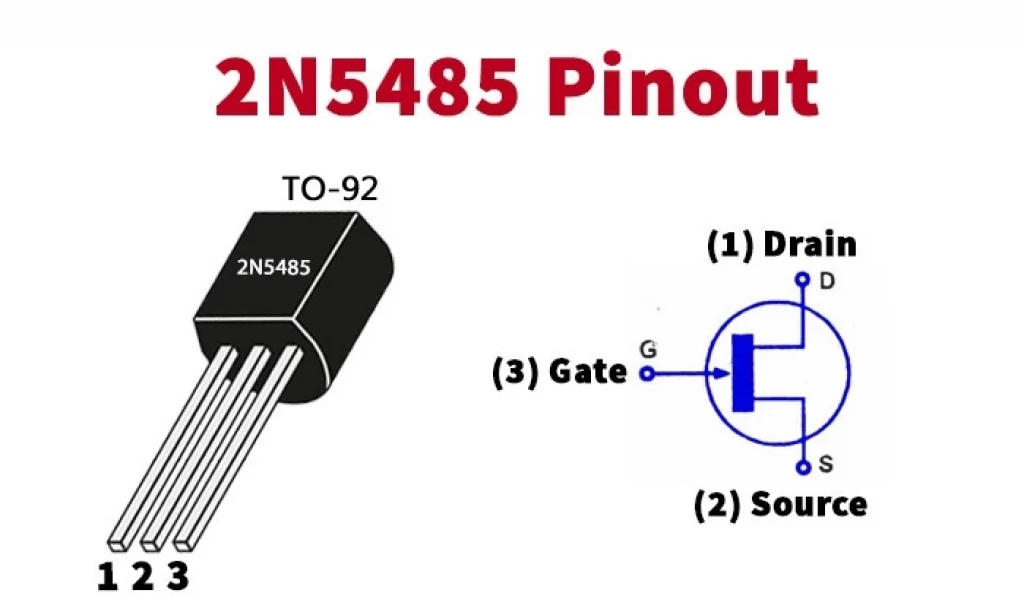

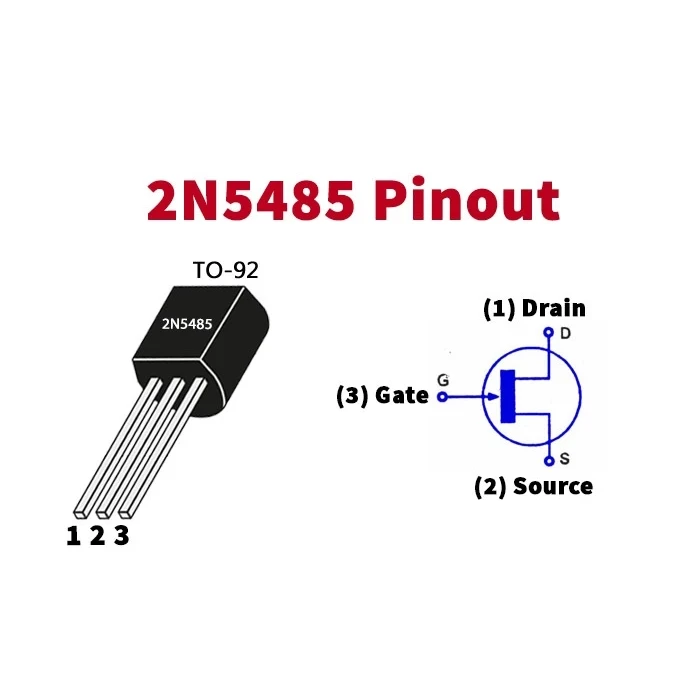

Package: TO92
